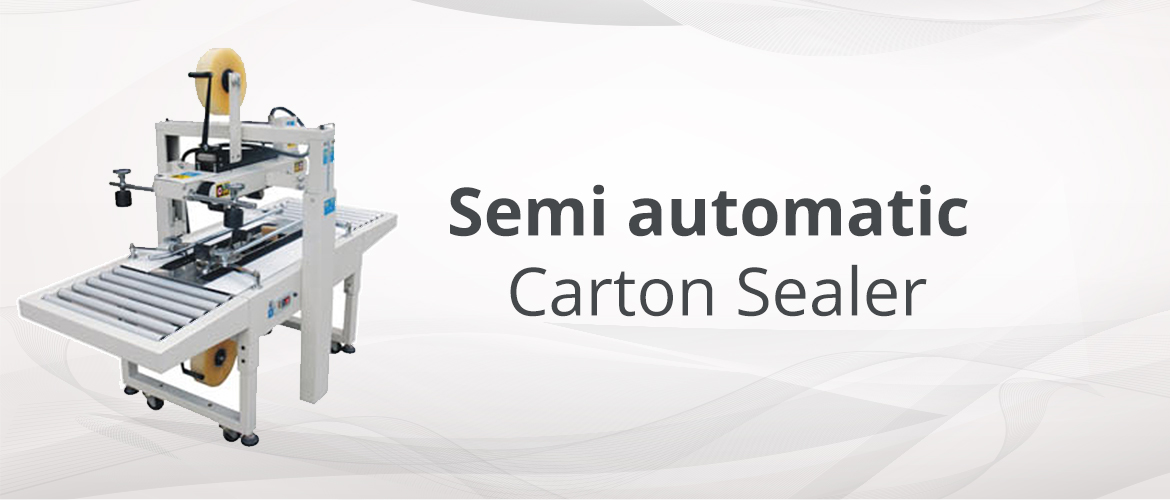

CSS 5050A
Features :
- The Machine is designed to seal carton by applying adhesive tape.
- Cost effective, high speed.
- Easy size changeovers.
- It is widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry.
- Conveyor belt tension and tape tension are adjustable to meet the needs of soft/ hard cartons.
- Printed tape can be used to improve enterprise image.
Product Description
| Specification | Details |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Max. Carton Size (WxH) (mm) | 500×500 |
| Min. Carton Size (WxH) (mm) | 130×100 |
| Speed (m/min) | 20 |
| Used Adhesive Tape | BOPP, Water-free adhesive tape, PVC adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (Optional) |
| External Dimensions (LxWxH) (mm) | 1730×950×(960~1550) |
| Net Weight (kg) | 120 |
Consult your machining problems and needs. More Information about product, detail specification, etc..
